SIEMENS 6SN1118-1NH00-0AA1 UNIVERSAL CONTROL 2-AXES.OPT-P 1PH2/4/6/7 STANDARD MOTORS, OPTIONAL RACK UNIT PREPARED
Okay, let's go through the key details for the Siemens 6SN1118-1NH00-0AA1 UNIVERSAL CONTROL 2-AXES.OPT-P 1PH2/4/6/7 STANDARD MOTORS, OPTIONAL RACK UNIT PREPARED:
1. Product Overview:
- This is a 2-axis universal control unit from the Siemens SIMODRIVE 611 digital drive system.
- It is part of the UNIVERSAL series, designed for precise control of standard AC motors.
- The "OPT-P" in the model name indicates that this unit is prepared for optional rack unit installation.
2. Key Features:
- 2-axis control functionality
- Support for 1PH2, 1PH4, 1PH6, and 1PH7 standard AC motors
- Prepared for optional rack unit installation
- Integrated power supply and control electronics
3. Technical Specifications:
- Control Axes: 2
- Supported Motor Types: 1PH2, 1PH4, 1PH6, 1PH7 standard AC motors
- Power Supply: 3-phase AC
- Control Electronics: Integrated
4. Functionality and Applications:
- The Siemens 6SN1118-1NH00-0AA1 UNIVERSAL CONTROL 2-AXES.OPT-P 1PH2/4/6/7 STANDARD MOTORS, OPTIONAL RACK UNIT PREPARED is designed for precise control of standard AC motors in industrial automation and machinery applications.
- It supports a range of standard AC motor types, including 1PH2, 1PH4, 1PH6, and 1PH7, providing flexibility in motor selection.
- This control unit is suitable for applications such as conveyor systems, packaging machinery, material handling, and other industrial automation
processes that require precise control of standard AC motors.
5. Integration and Configuration:
- The control unit is designed to be integrated within the SIMODRIVE 611 digital drive system from Siemens.
- It can be configured and programmed using the Siemens engineering software, such as SIMODRIVE Startdrive or SINUMERIK CNC programming tools.
- The integration with the SIMODRIVE 611 system allows for seamless communication and control of the motor drives.
- The "OPT-P" feature indicates that this control unit is prepared for optional rack unit installation, providing flexibility in system integration.
6. Advantages:
- 2-axis control functionality for improved productivity and efficiency
- Support for a range of standard AC motor types (1PH2, 1PH4, 1PH6, 1PH7)
- Prepared for optional rack unit installation for flexible system integration
- Integrated power supply and control electronics for a compact design
- Seamless integration with the SIMODRIVE 611 digital drive system
7. Certifications and Approvals:
- The Siemens 6SN1118-1NH00-0AA1 UNIVERSAL CONTROL 2-AXES.OPT-P 1PH2/4/6/7 STANDARD MOTORS, OPTIONAL RACK UNIT PREPARED is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific application and region of use.
Please let me know if you need any additional information or have further questions about this Siemens control unit.
| Product |
| Article Number | 6SN1118-1NH00-0AA1 |
| Product Description | ****spare part**** SIMODRIVE 611 universal digital Control Unit, 2 axes, connection optical encoder positioning or actual position setpoint interface for motors motors 1FT6, 1FK6, 1FE1, 1FN1/2, 1PH2/4/6/7 standard motors, optional rack unit prepared |
| Product family | Not available |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| PLM Effective Date | Product discontinued since: 30.09.2008 |
| Notes | |
| Successor information |
| Successor | 6SN1118-1NH01-0AA1 |
| Successor Description | ***SPARE PART*** SIMODRIVE 611 UNIVERSAL HR 2-AXIS CONTROL-LOOP BLOCK INCREMENTAL ENCODER SIN/COS 1 VPP ABSOLUTE VALUE ENCODER ENDAT SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS |
| Price data |
| Price Group | S60 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : EAR99H / AL : 3D225 |
| Estimated dispatch time (Working Days) | 10 Day(s) |
| Net Weight (kg) | 0,600 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515014119 |
| UPC | Not available |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD91.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
|
|

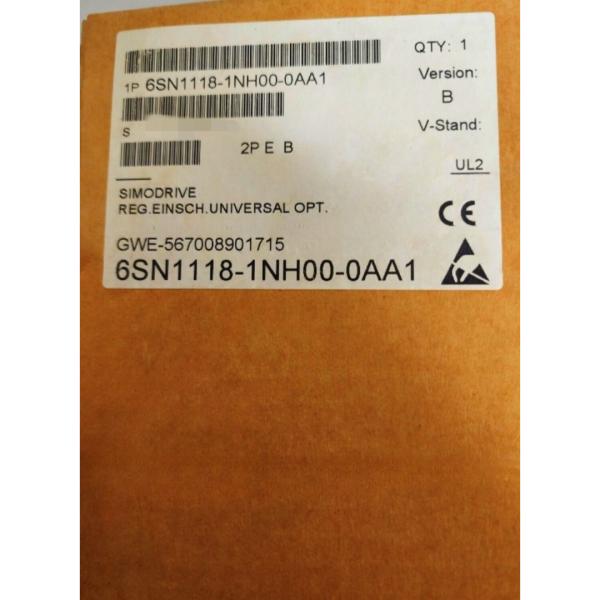

SIEMENS 6SN1118-1NH00-0AA1 UNIVERSAL CONTROL 2-AXES.OPT-P 1PH2/4/6/7 STANDARD MOTORS, OPTIONAL RACK UNIT PREPARED Images
|
